KSCY Series Portable Screw Air Compressor

Overview:

Advantage of KSCY Series Portable Screw Air Compressor Convenient and easy to use, can work 24 hours unattended all day, no load automatic start, full load automatic stop. Widely used in precision ……

Send email to us Contact us

Advantage of KSCY Series Portable Screw Air Compressor

  1. Convenient and easy to use, can work 24 hours unattended all day, no load automatic start, full load automatic stop.
  2. Widely used in precision coating, electronic parts processing, micro processing and other industries of compressed air processing equipment.
  3. Intelligent design. Perfect interface control system, cooling system, inlet filtration system.
  4. Strong stability. For a long time in the working environment, the exhaust volume and air pressure are stable, no crash phenomenon, and the failure rate is low.

diesel powered air compressor

Applications:

The newly developed rotor tooth profile dedicated to the main engine of screw compressor is adopted to provide superior performance, solid axial and radial bearings for each model of machine head, so as to ensure longer service life. In key areas, triple shaft seal is used to eliminate leakage problems, and wear-resistant shaft sleeve with O-type seal ring is accurately ground, With high maintainability, each product has superior performance and efficiency, and produces large exhaust with small motor horsepower.

The oil cooler is designed with super large cooler and fan according to the actual working conditions in China, with better exhaust temperature, which is suitable for working in the harsh environment in the field.

The gas volume automatic control system automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine according to the service pressure, so as to completely match the gas supply and gas consumption, So as to achieve better results with lower fuel consumption.

The brand power adopts Cummins, Yuchai and other brand diesel engines. Strong power, reliable operation, good fuel economy, exhaust emission and noise.

Multiple Air Filtration System. Effectively prevent the impact of harsh dust environment on the engine. The precision filter layer of the main air filter filters out the remaining dust to ensure that the machine is not worn. The safety filter element allows the machine to perform air filter maintenance without stopping the machine to ensure the safe operation of the machine.

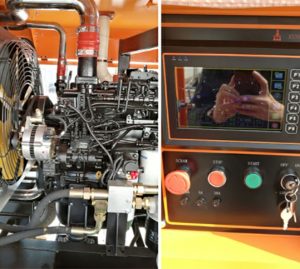

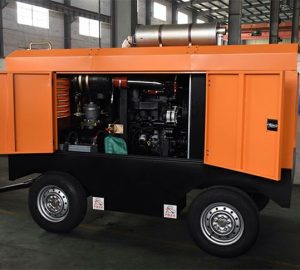

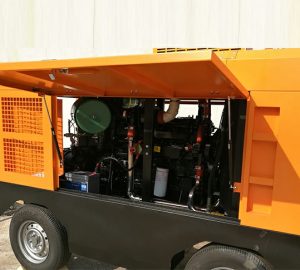

Detail:

mobile diesel compressor for sale
diesel driven air compressor
portable diesel compressor

2 Rounds

diesel engine air compressor
diesel driven air compressor
mobile diesel compressor for sale

4 Rounds

diesel engine air compressor
diesel powered air compressor
Diesel portable screw air compressor



Technical Parameter of KSCY Series Portable Screw Air Compressor

Model Air pressure(bar) Air capacity(m³/min) Engine model(kW) Dimension(mm) Weight(kg)
KSCY-360/13 13 10 Yuchai110 4000*1900*2300 2300
KSCY-425/10 10 12 Yuchai110 4000*1900*2300 2300
KSCY-460/14.5 14.5 13 Cummins132 4000*1900*2300 2600
KSCY-550/13 13 15 Cummins132 3300*1600*2400 3000
KSCY-550/13 13 15 Yuchai176 3300*1600*2400 3000
KSCY-580/17 17 17 Cummins 194 3900*1700*2400 3400
KSCY-680/14.5 14.5 19 Cummins 194 3900*1700*2400 3400

diesel powered air compressor

diesel engine air compressor



We take great pleasure in introducing our latest compressed air processing apparatus thats specifically engineered for a wide range of industrial purposes including precision coating, electronic parts processing, micro processing among others. Our machine is easy to operate and can function round the clock!

The most striking facet of our compressed air processing equipment is its no load automatic start that ensures the device begins functioning immediately when necessary while its full load automatic stop shuts it off when idle – this translates to convenience and optimum energy conservation for operators whilst extending the appliances life span! At the heart of this machine lies its intelligent design with a high performance interface control system, cooling system and inlet filtration arrangement; all collaborating smoothly for maximum efficiency and dependability while guaranteeing easy accessibility during maintenance checkups. And last but not least- stability remains integral within our compressed air processing equipment! Our unit boasts the ability to operate for extended periods of time in demanding work environments without any risk of crashing or failure. With its stable exhaust volume and air pressure levels maintained throughout heavy usage scenarios; this device consistently delivers high-performance results that meet industry standards across precision coating, electronic parts processing and micro-processing applications alike.

The intelligent design of our compressed air processing equipment includes features such as full-load automatic stop capabilities which make it an indispensable addition to any business requiring guaranteed performance reliability from their technology investments. What sets our product apart? Our solution offers an efficient and convenient option capable of unassisted operation 24/7 while boasting a sophisticated interface control system along with impressive cooling and inlet filtration systems designed for maximum efficacy during use.

Our premium compressed air processing equipment boasts a reliable performance and user friendly interface making it an essential asset in any workplace. Don’t miss out on the opportunity to enhance your industrial processing capabilities by upgrading with us!
