Deep Well Screw Air Compressor HGS Series


Product Introduction: More powerful and more energy-saving new air compressor host Two-stage compression, the latest patented screw rotor, higher efficiency; Energy efficiency level is 10% higher t……

Send email to us Contact us

Product Introduction

More powerful and more energy-saving new air compressor host
Two-stage compression, the latest patented screw rotor, higher efficiency;
Energy efficiency level is 10% higher than similar products, more energy-saving; heavy-duty high-strength design, high-quality SKF bearings, direct drive, quality assurance, stable and reliable; designed according to the maximum design pressure of 40bar, the best air compressor structure and reliability.

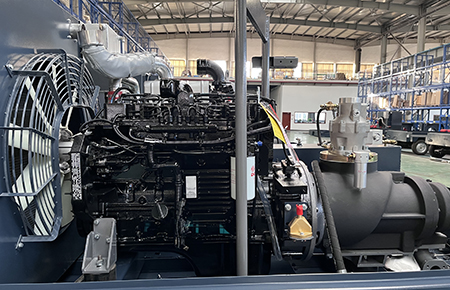

High-quality heavy-duty diesel engine
High-efficiency electronic injection high-pressure common rail fuel system;
It is equipped with heavy-duty diesel engines such as Cummins and Weichai; the intelligent control system accurately controls the fuel injection volume,
Achieve the best power output in the full operating range; stronger power, higher reliability, and better fuel economy;
Meet the national three emission requirements.

Intelligent control system
Intuitive display interface, multi-language intelligent controller,  easy to use;
Real-time online display of operating parameters such as speed, air supply pressure, oil pressure and exhaust temperature, coolant temperature, fuel level, etc.;
With self-diagnostic failure, alarm and shutdown protection functions, to ensure safe operation when unattended;
Optional remote monitoring system and mobile phone APP function.
Efficient cooling system.

Efficient and reliable system configuration to ensure that the whole machine is in the best operating state
Independent oil, gas, and liquid coolers, large-diameter high-efficiency fans, and smooth airflow channels;
Adapt to the extreme cold, hot and plateau climate.

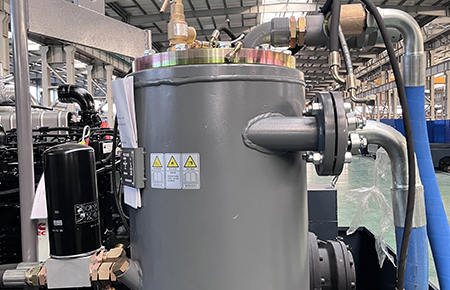

Large-capacity heavy-duty air filtration system and oil-gas separation system
Cyclone type high-quality heavy-duty main air filter, double filter, filter out dust and other debris particles in the air, to ensure that the diesel engine and the air compressor host loses the least under harsh working conditions and extend the life of the machine;

The special high-efficiency oil and gas separation system adapted to the changing working conditions of drilling rigs, water well drilling, etc., to ensure that the air quality after oil and gas separation under various working conditions meets the requirements of 3PPM and prolong the life of the oil separation core.

Deep well screw air compressor

High-quality and reliable air compressor coolant and lubrication system
The chemical composition and physical properties of the coolant are stable in low and high temperature environments, and will not coke or deteriorate. Multiple oil filter design and constant temperature control can ensure minimal loss under severe working conditions and extend the life of the machine.
Rich customization options
Optional dual-condition air compressor host and control system to meet the efficient construction of various operations;
Optional low-temperature starting system, fuel coolant heater to continuously increase the temperature of diesel engine coolant, lubricating oil and the whole machine, ensuring that the diesel engine starts in severe cold and plateau environment;
Optional after cooler to ensure that the exhaust temperature is not higher than the ambient temperature by 15°C;
Optional air pre-filter to ensure that diesel engines and air compressors are kept away from early wear and tear in high dust environment; optional remote monitoring system and mobile phone APP function, equipment management becomes easy and free.

Higher profit and easier maintenance
A variety of innovative designs can effectively reduce customer use costs and greatly improve work efficiency. Improve the rate of return on investment;
Silent enclosure and fully enclosed chassis are designed with shock absorption and noise reduction, smooth operation and lower noise;
The spacious full-open door panel and reasonable structure layout make it very simple and easy to maintain the air filter, oil filter, and oil separation core;


Technical parameters:

Model Engine (kw) Air Capacity (m3/min ) Air Pressure (bar) Weight
HGS-30/25C Cummins 294 30 25 5300
HGS-36/30C Yuchai 410 36 30 5900
HGS-24/22W Cummins 24 22 5400

Product Details:

small screw air compressor
industrial screw compressor
best rotary screw air compressor



Experience the power packed performance of our latest air compressor model – designed to meet all your compressed air needs efficiently! The equipment boasts two stage compression powered by a patented screw rotor design that offers unparalleled efficiency along with energy saving capabilities. Our team has used heavy duty high strength materials in its construction to ensure long lasting performance and durability.

We’ve equipped it with only premium quality SKF bearings and direct drive technology to enhance reliability, stability and peace of mind for users. When it comes to eco friendliness coupled with cost effectiveness – look no further than our compressor; energy efficient levels surpass similar products available in the market by 10%.

At maximum pressure of 40bar this equipment ensures optimal performance while adhering strictly to all necessary safety standards – giving you complete confidence while using it. Our focus on safety is at the forefront when it comes to designing our air compressor host – ensuring its continuous accident free operation.

As well as this advanced host system, introducing our heavy duty diesel engine – which boasts incredible efficiency in terms of output capability (a remarkable 800 watts!) adds scope for businesses seeking optimal performance combined with durability and reliability. With cutting edge technology at play across both products’ creation processes (air compressor host & diesel engine) their versatility makes handling various applications feasible – be it a workshop or factory floor right through to industrial construction sites. Investing in this high grade machinery translates into cost savings where routine maintenance becomes less frequent while simultaneously extending compressed air & industrial equipments life expectancy significantly.

Your requirement for premium level equipment is paramount; hence we’ve maintained an unwavering commitment while crafting these exceptional air compressor host and diesel engine offerings. We have utmost confidence in our products to surpass your expectations standing by their quality through this entire journey. To conclude this discussion, we introduce to you the ideal solution for those seeking high-end compressed air technology – our new combination of an air compressor host along with a diesel engine.

This innovative product incorporates the latest screw rotor and bearing technology alongside direct drive mechanics plus an exceptionally robust design to provide outstanding performance reliability that surpasses all other existing similar products on the market. Our advanced diesel engines are engineered to last long term while ensuring excellent output efficiency across industrial systems.

Wait no longer; make the right choice by upgrading your existing compressed system – get hold of our superior Air Compressor Hosts coupled with Diesel Engines today!
