Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining 1.Simple structure,light weight,easy to move. 2.Easy operating and maintenance. 3.High quality air delivery. 4.Superior technolo……

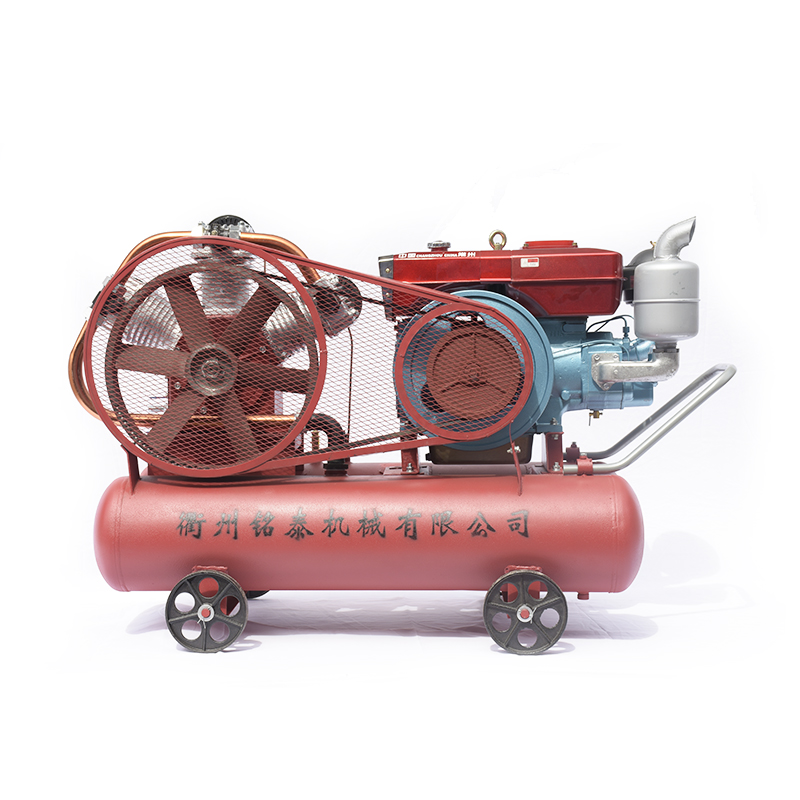

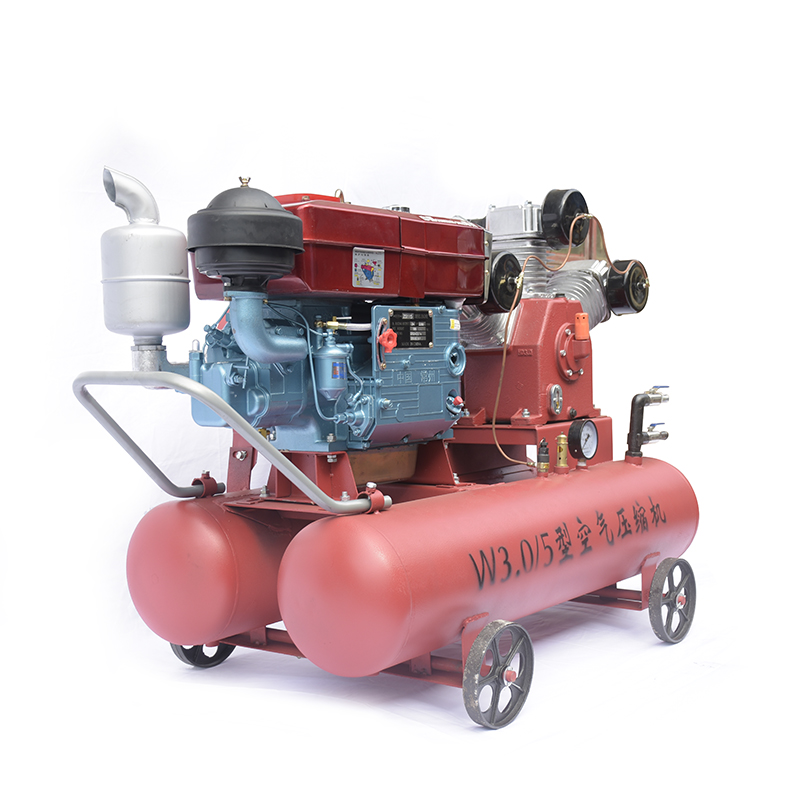

Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move.
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost.
Product Introduction：
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move.
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost.
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption

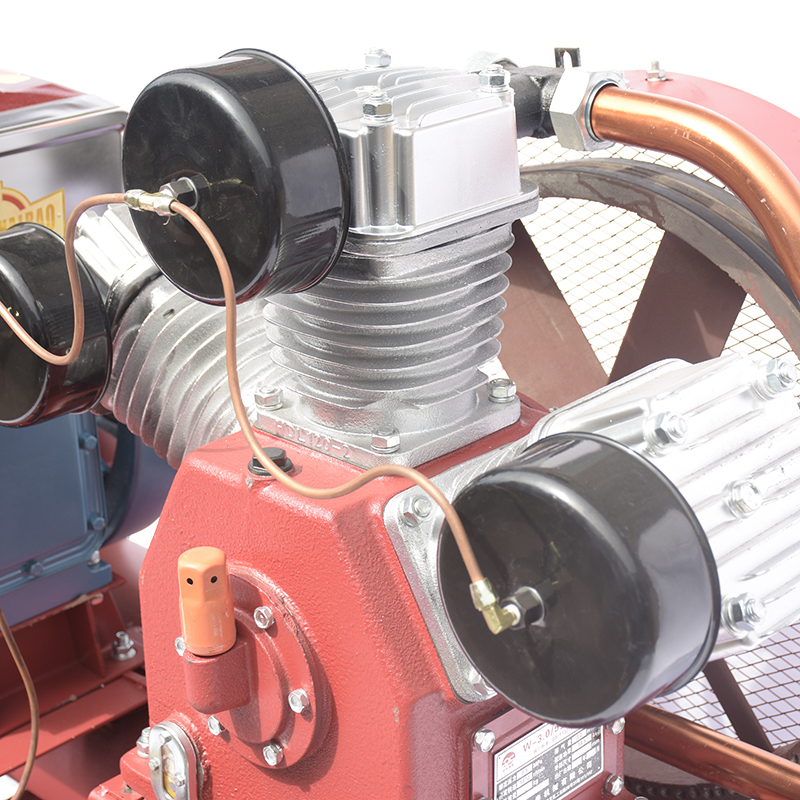

7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
| Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
| W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |
| W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |
| W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
| W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
| W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |
| SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
| 2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |
| 2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
Product details
Enhancing productivity whilst reducing complexity is always a top priority when searching for equipment to assist with work related tasks. Look no further than the Diesel Portable Piston Air Compressor Mobile for Jack Hammer/Mining! Its simple design allows you to easily handle and maneuver the device regardless of location ensuring flexibility during operation.
Moreover operating and maintaining this remarkable device has never been simpler. This top of the line compressor boasts advanced technology that maximizes output whilst minimizing effort thus keeping costs low.
One major feature not to be overlooked is the valve plate and spring strip which are made from special Swedish steel that has undergone unique processing techniques promoting their durability over time.
The piston ring has also been customized explicitly creating an ideal balance between flexibility during prolonged periods of high pressure usage whilst consuming minimal lubricating oil throughout said usage.
Finally its boron cast iron composition makes it highly durable against wear and tear making it an ideal choice even in harsh dusty conditions. In industries requiring absolute precision such as mining, reliability must be a given when choosing equipment.
Fortunately, this is where the Diesel Portable Piston Air Compressor Mobile for Jack Hammer/Mining excels by offering outstanding performance capability coupled with unparalleled durability that’s unmatched by other compressors. Its exceptional technology boasts a straightforward design that offers optimal performance capabilities with minimal efforts, making it the preferred choice for those seeking efficient and user-friendly industrial solutions. Order your own today and see how this compressor can transform your operations!
