Product Briefing： This electric portable screw air compressor is widely used in highway, railroad, mining, water conservancy, ship, urban construction, energy, military industry and other industrie……
Product Briefing：
This electric portable screw air compressor is widely used in highway, railroad, mining, water conservancy, ship, urban construction, energy, military industry and other industries. Electric power environmental protection type air compressor.
Product introduction：

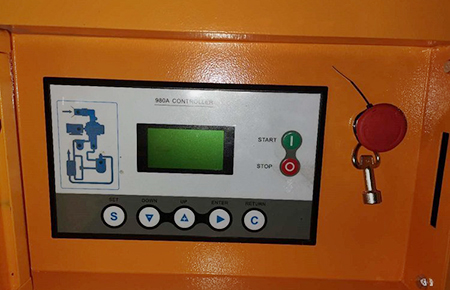

KS series new screw air compressor humanized man-machine interface display control system
1. The operation is particularly convenient and simple
2. The operating status is clear at a glance
3. There is a spare output interface, which can realize multi-unit interlocking control and remote diagnosis control
KS series new screw air compressor with built-in oil separation system
The built-in oil separator design ensures the oil-gas separation effect and reduces the fuel consumption. The product quality is fully guaranteed from the initial design.
KS Series New Type Screw Air Compressor High-efficiency Air Intake Control Valve
1. ON/OFF control method
2. With check valve anti-injection design
KS series new type screw air compressor, a new generation of low-consumption and high-efficiency motors
1. Large starting torque
2. Insulation class F, protection class IP54
3. SKF bearings, low noise, long life
Technical parameters：
| Model | Air pressure(bar) | Air capacity(m³/min) | Motor power(kW) | Weight(kg) | Dimension(mm) |
| KSDY-13.6/8 | 8 | 13.6 | 75 | 1700 | 3200*1600*1900 |
| KSDY-12.5/10 | 10 | 12.5 | 75 | 1700 | 3200*1600*1900 |
| KSDY-10/14.5 | 14.5 | 10 | 75 | 1700 | 3200*1600*1900 |
| KSDY-16.5/8 | 8 | 16.5 | 90 | 2400 | 3200*1600*2000 |
| KSDY-13/14.5 | 14.5 | 13 | 90 | 2400 | 3200*1600*2000 |
| KSDY-20/8 | 8 | 20 | 110 | 3000 | 3200*1700*2000 |
| KSDY-24/8 | 8 | 24 | 132 | 3200 | 3300*1700*2000 |
| KSDY-17/13 | 13 | 17 | 132 | 3200 | 3300*1700*2000 |
| KSDY-15/17 | 17 | 15 | 132 | 3200 | 3300*1700*2000 |
| KSDY-19/17 | 17 | 19 | 185 | 4000 | 3800*1800*2100 |
| KSDY-24/14 | 14 | 24 | 185 | 4000 | 3800*1800*2100 |
Detail:
If your business falls under any of these categories – highway, railroad, mining, water conservancy, shipbuilding or urban construction – then we have big news for you! The KS series electric portable screw air compressor was designed and manufactured with your industry in mind. Thiseco friendly solution will help you achieve your professional goals without adversely impacting the environment.
While its certainly built to impress with its sturdy construction and sleek design; what sets it apart from competitors is its user friendly technology which enables even those with no prior experience to operate it effectively. The display control system allows you to monitor all aspects of operation and ensure it remains working at optimal levels. Reliable and efficient connections are critical in any production process; hence why this air compressor comes equip with a spare output interface allowing interconnectivity for even better results! The search for an alternative that benefits both businesses and nature ends here- introducing the KS series electric portable screw air compressor! Its compact design offers convenience when transporting from one location to another while reducing one’s environmental impact through its electric power source- perfect for companies striving to go green.
Ideal for various heavy-duty tasks such as construction and mining, this compressor is also a reliable and efficient option for ensuring consistent air supply in business operations. Experience the advantages of KS series- invest in it today!
