Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining 1.Simple structure,light weight,easy to move . 2.Easy operating and maintenance. 3.High quality air delivery. 4.Superior technol……
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost .
Product Introduction
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost.
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
| Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
| W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |

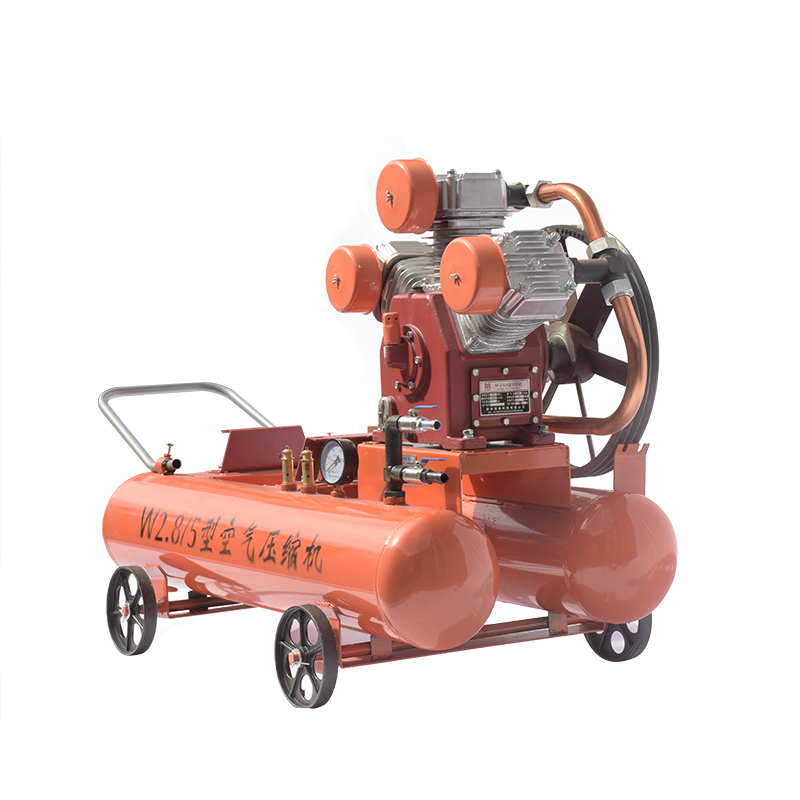

| W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |

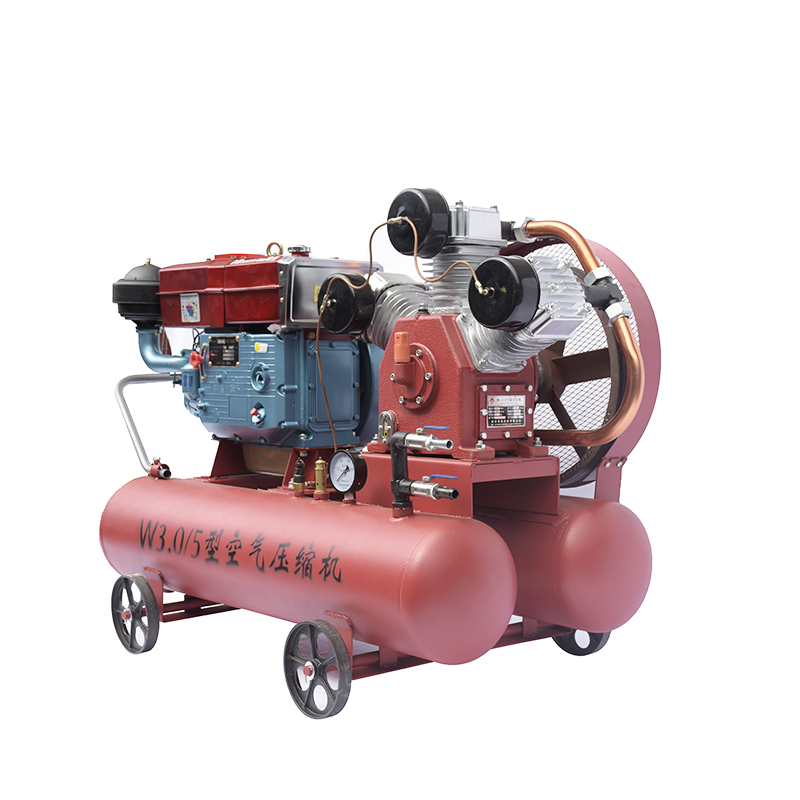

| W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
| W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
| W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |

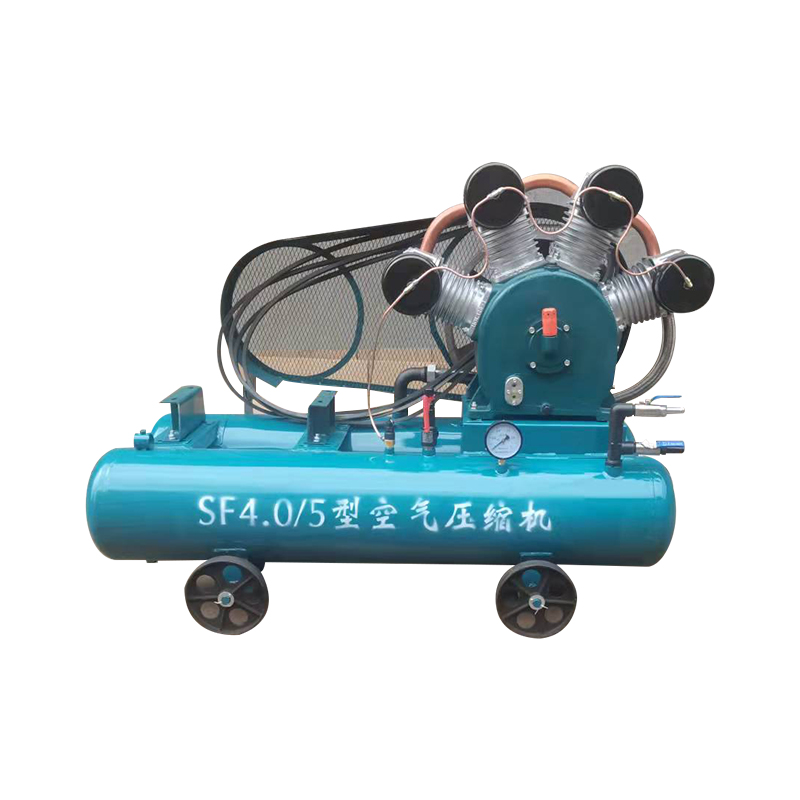

| SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
| 2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |

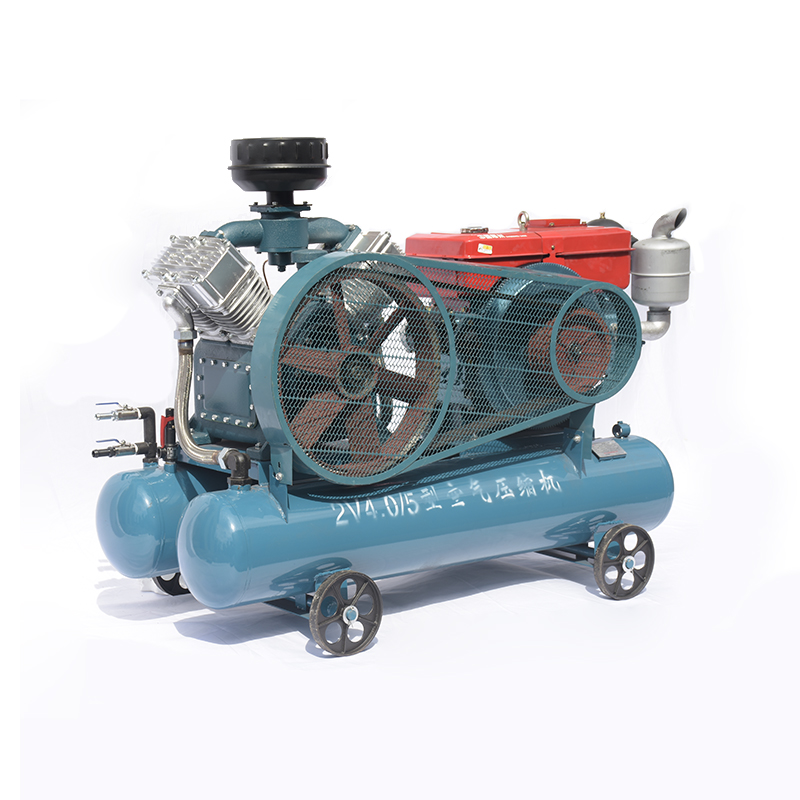

| 2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
When it comes to finding an air compressor that can meet mining or jackhammer operation needs look no further than the Diesel Portable Piston Air Compressor Mobile. With ease of movement at its core this lightweight compressor can be deployed wherever needed with minimal effort on your part—including low maintenance requirements so you can focus on the job at hand. Even better?
This simple yet powerful model packs a punch when it comes to compressed air quality—all at an affordable price tag.
But don’t let its streamlined design fool you into thinking it skimps on durability; every component was carefully chosen with longevity in mind. For example valve plates and spring strips made solely from specially treated Swedish steel ensure dependable performance for years to come.
The advanced piston rings integral cast contributes maximum flexibility while reducing lubricating oil consumption—an unparalleled feature among competing models—while boron cast iron cylinders prove tough as nails even amidst dusty conditions commonly encountered by miners or those using jackhammers. Serious about taking your mining or jackhammer operation to the next level? Look no further than the Diesel Portable Piston Air Compressor Mobile.
This powerhouse compressor is designed with simplicity in mind making it easy to use without sacrificing performance or durability. With its unbeatable air delivery capacity and long-lasting build quality its an essential addition to any serious business owners toolkit. Invest today and see the results for yourself.
