Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining 1.Simple structure,light weight,easy to move. 2.Easy operating and maintenance. 3.High quality air delivery. 4.Superior technolo……

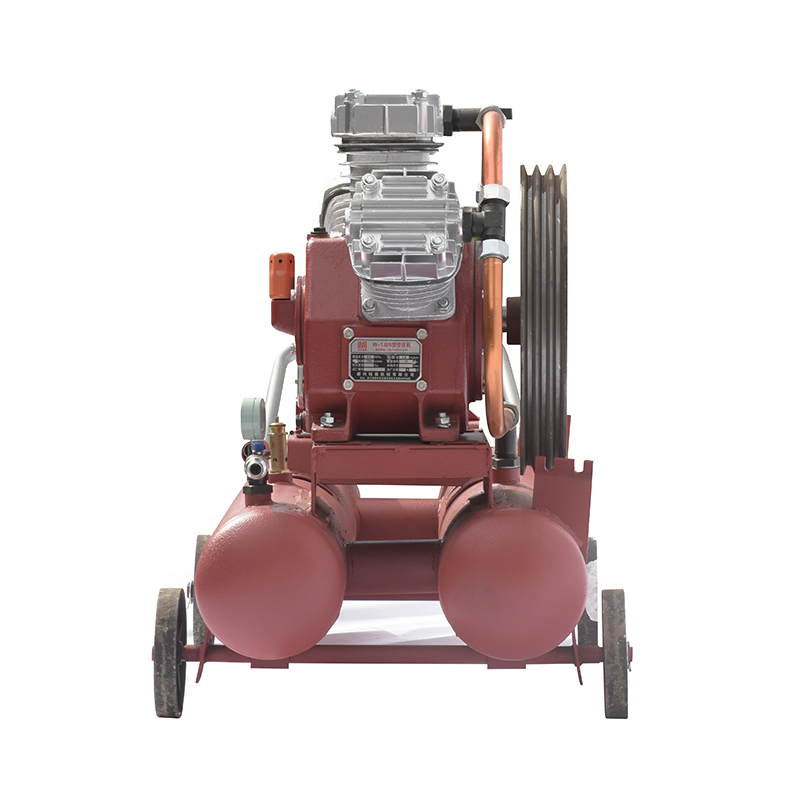

Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move.
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost .
Product Introduction
Diesel Portable Piston Air Compressor Mobile for Jack Hammer / Mining
1.Simple structure,light weight,easy to move .
2.Easy operating and maintenance.
3.High quality air delivery.
4.Superior technology,Low cost .
5.Valve plate and spring strip:made of special steel from Sweden and after special treatment.
6.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption.
7.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition.
8.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
9.High efficiency and low consumption.
10.Stable and smooth running with anti-vibration frame.
11.Professional design and Special manufacturing.
12.Energy saving.
Technical Specification
| Model | Motor power | Cylinder qty*mm | Rotation speed r/min | F A D m³/min | Working pressure Mpa(kg/cm³) | Dimension L*W*H mm | Weight KGS |
| W-1.8/5 | S1100*11KW | 3*φ100 | 1200 | 1.8 | 0.5（5）） | 1500*600*950 | 300 |
| W-2.8/5 | S1100*15KW | 3*φ115 | 1120 | 2.6 | 0.5（5） | 1670*820*1150 | 450 |
| W-3.0/5 | S1115*18.5KW | 3*φ120 | 1070 | 3 | 0.5（5） | 1880*870*1230 | 460 |
| W-3.2/7 | S1125*18.5KW | 3*φ125 | 800 | 3.7 | 0.7(7) | 1910*800*1620 | |
| W-3.5/5 | S1125*18.5KW | 3*φ125 | 1170 | 3.5 | 0.5（5） | 1880*870*1240 | 460 |
| SF4.0/5 | S1125*18.5KW | 4*φ120 | 1070 | 4.0 | 0.5（5） | 1960*860*1300 | 655 |
| 2V-3.5/5 | S1125*18.5KW | 4*φ115 | 980 | 3.5 | 0.5（5） | 1800*950*1300 | 650 |
| 2V-4.0/5 | S1125*18.5KW | 4*φ120 | 980 | 4.0 | 0.5（5） | 1800*950*1300 | 750 |
Product Details
Our Diesel Portable Piston Air Compressor Mobile for Jack Hammer/Mining is the perfect addition to any worksite – designed with simplicity but durability in mind; its the ultimate solution to all your industrial as well as professional needs. Need an easy to move solution?
Our diesel powered compressor offers portability without compromising on strength or reliability – move from site to site freely! This makes it ideal not only during mining operations or at construction sites but also in other similar locations such as utilities maintenance.
Worried about complicated operation? Don’t be! Our user friendly operating system makes running the compressor very straightforward even if its your first time using one; furthermore maintenance demands are kept minimal so that keeping your piston mobile is straightforward and stress free.
Get unbeatable performance when it comes to high quality air delivery with our Diesel Portable Piston Air Compressor Mobile for Jack Hammer/Mining. The promise of this compressor lies in its advanced technology that ensures smooth airflow throughout-the-board facilitating crisp efficiency at work.
The best part? Despite delivering top-of-the-line performance and impressive power – this remarkable machine comes with an unexpectedly reasonable price tag – affording businesses or organizations with limited resources access to high-grade compressed air.
More impressively still is the low-cost maintenance fees required for upkeep – that won’t raze resources away from operations – making owning a high-quality compressed-air system possible on tight budgets. So why keep waiting? Searching for dependable gears to fortify your worksite’s infrastructure? Look no further than the Diesel Portable Piston Air Compressor Mobile designed specifically for jackhammering applications or mining sites! It’s clear-cut superiority in advanced technological updates combined with ease of usage & maintenance will ensure maximum success levels along with unmatched proficiency when it comes to delivering superlative quality compressed-air – just what any business needs.
